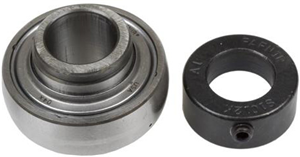

RELUBE INSERT BEARING 3/4 - WIDE INNER RING

  • Item Code: 308-G1012KRRB
  • Brand: Timken
  • Mfg Part No: G1012KRRB

Description

Features Tech Specs Interchanges

Features

Back To Top

    Ball Bearing Insert

    Wide Inner Ring - Greasable     Standard Industrial / Agricultural Applications

    G - KRRB Series

    • Wide Inner Ring with Self Locking Collar
    • For extremely dirty or wet conditions
    • R-Seals with flared lips firmly contact the ground OD of the inner ring and provide a positive seal against dirt and other contaminants while effectively retaining the lubricant
    • Shroud-Seals provide extra effectiveness and protection
    • Extra-wide design provides additional shaft support and extra-large grease capacity
    • Spherical OD

Tech Specs

Back To Top
Basic Outer Ring Size 204
Bearing I.D. 3/4"
Bearing O.D. 47mm
Bearing Type Insert Bearing
Bore Shape Round
Brand Timken
Greasable / Sealed Greasable
Inner Race Wide
Inner Ring Width 1-11/32 Inch
Outer Race Shape Spherical
Outer Ring Width .551 Inch
Shaft Lock Type Lock Collar

Interchanges

Back To Top
  • AWPS012GPC
  • T10664
  • 673363R91 (CNH)
  • 7008001539
  • 520156
  • WPS012GRC
  • 70080-01539
