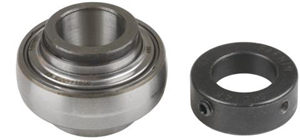

RELUBE INSERT BEARING 7/8 - WIDE INNER RING

Item Code: 308-G1014KRRB
Brand: Timken
Mfg Part No: G1014KRRB

Bearing I.D.

Bearing O.D.

Greasable / Sealed

Outer Race Shape

Description

Features Tech Specs Interchanges

Features

Ball Bearing Insert

Wide Inner Ring - Greasable Standard Industrial / Agricultural Applications

G - KRRB Series

Wide Inner Ring with Self Locking Collar
For extremely dirty or wet conditions
R-Seals with flared lips firmly contact the ground OD of the inner ring and provide a positive seal against dirt and other contaminants while effectively retaining the lubricant
Shroud-Seals provide extra effectiveness and protection
Extra-wide design provides additional shaft support and extra-large grease capacity
Spherical OD

Tech Specs

Basic Outer Ring Size	205
Bearing I.D.	7/8"
Bearing O.D.	52mm
Bearing Type	Insert Bearing
Bore Shape	Round
Brand	Timken
Greasable / Sealed	Greasable
Inner Race	Wide
Inner Ring Width	1-3/8 Inch
Outer Race Shape	Spherical
Outer Ring Width	.591 Inch
Shaft Lock Type	Lock Collar

Interchanges

Back To Top

KMC33-051-052
TPJD9442
TP-JD9442
AWPS014GRC
33051052
939473R91 (CNH)
KMC33051052
JD9442
33-051-052
WPS014GRC
