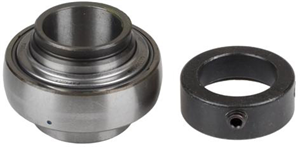

RELUBE INSERT BEARING-1" ID- WIDE INNER RING
- Item Code: 308-G1100KRRB
- Brand: Timken
- Mfg Part No: G1100KRRB
Description
Features
Back To Top- Wide Inner Ring with Self Locking Collar
- For extremely dirty or wet conditions
- R-Seals with flared lips firmly contact the ground OD of the inner ring and provide a positive seal against dirt and other contaminants while effectively retaining the lubricant
- Shroud-Seals provide extra effectiveness and protection
- Extra-wide design provides additional shaft support and extra-large grease capacity
- Spherical OD
Ball Bearing Insert
Wide Inner Ring - Greasable Standard Industrial / Agricultural Applications
G - KRRB Series
Tech Specs
Back To Top| Basic Outer Ring Size | 205 |
|---|---|
| Bearing I.D. | 1" |
| Bearing O.D. | 52mm |
| Bearing Type | Insert Bearing |
| Bore Shape | Round |
| Brand | Timken |
| Greasable / Sealed | Greasable |
| Inner Race | Wide |
| Inner Ring Width | 1-3/8 Inch |
| Outer Race Shape | Spherical |
| Outer Ring Width | .591 Inch |
| Shaft Lock Type | Lock Collar |
Interchanges
Back To Top- AH159863 (JOHN DEERE)
- 625020R91 (CNH)
- 7008000409
- WPS100GRC
- 152923C91 (CNH)
- AH214862 (JOHN DEERE)
- JD9302 (JOHN DEERE)
- 03-051-021
- 990255
- KMC03-051-021
- 3051021
- F54720
- 70080-00409
- TPJD9302
- 1FG1100KRRB
- KMC03051021
- WPS-100-GRC
- TP-JD9302
- 221956
