RELUBE INSERT BEARING-1-3/16" ID- WIDE INNER RING

  • Item Code: 308-G1103KRRB
  • Brand: Timken
  • Mfg Part No: G1103KRRB

Description

Features

Back To Top

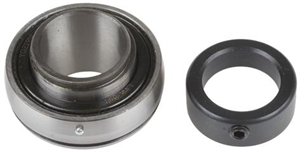

    Ball Bearing Insert

    Wide Inner Ring - Greasable     Standard Industrial / Agricultural Applications

    G - KRRB Series

    • Wide Inner Ring with Self Locking Collar
    • For extremely dirty or wet conditions
    • R-Seals with flared lips firmly contact the ground OD of the inner ring and provide a positive seal against dirt and other contaminants while effectively retaining the lubricant
    • Shroud-Seals provide extra effectiveness and protection
    • Extra-wide design provides additional shaft support and extra-large grease capacity
    • Spherical OD

Tech Specs

Back To Top
Basic Outer Ring Size 206
Bearing I.D. 1-3/16"
Bearing O.D. 62mm
Bearing Type Insert Bearing
Bore Shape Round
Brand Timken
Greasable / Sealed Greasable
Inner Race Wide
Inner Ring Width 1-7/16 Inch
Outer Race Shape Spherical
Outer Ring Width .709 Inch
Shaft Lock Type Lock Collar

Interchanges

Back To Top
  • WPS103GRC
  • 6050118
  • KMC03-051-027
  • HUS5919
  • 03-051-027
  • FH711465
  • 5919
  • G1103KRRBDS
  • YG219NL
  • 6050-118
  • KMC03051027
  • 3051027
  • AWPS103GRC
  • 711465
