RELUBE INSERT BEARING-1-1/4" ID- WIDE INNER RING

  • Item Code: 308-G1103KRRB3
  • Brand: Timken
  • Mfg Part No: G1103KRRB3

Description

Features Tech Specs Interchanges

Features

Back To Top

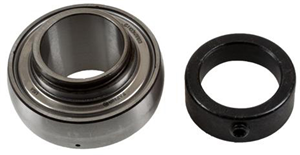

    Ball Bearing Insert

    Wide Inner Ring - Greasable     Standard Industrial / Agricultural Applications

    G - KRRB Series

    • Wide Inner Ring with Self Locking Collar
    • For extremely dirty or wet conditions
    • R-Seals with flared lips firmly contact the ground OD of the inner ring and provide a positive seal against dirt and other contaminants while effectively retaining the lubricant
    • Shroud-Seals provide extra effectiveness and protection
    • Extra-wide design provides additional shaft support and extra-large grease capacity
    • Spherical OD

Tech Specs

Back To Top
Basic Outer Ring Size 206
Bearing I.D. 1-1/4"
Bearing O.D. 62mm
Bearing Type Insert Bearing
Bore Shape Round
Brand Timken
Greasable / Sealed Greasable
Inner Race Wide
Inner Ring Width 1-7/16 Inch
Outer Race Shape Spherical
Outer Ring Width .709 Inch
Shaft Lock Type Lock Collar

Interchanges

Back To Top
  • 273806
  • 470743R91 (CNH)
  • A1103KRRB3
  • WPS103GR2C
  • TPJD9367
  • TP-JD9367
  • FH711432
  • 72653
  • 7265-3
