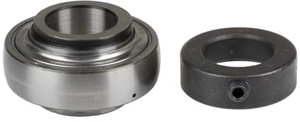

RELUBE INSERT BEARING-1-1/4" ID- WIDE INNER RING
- Item Code: 308-G1104KRRB
- Brand: Timken
- Mfg Part No: G1104KRRB
Description
Features
Back To Top- Wide Inner Ring with Self Locking Collar
- For extremely dirty or wet conditions
- R-Seals with flared lips firmly contact the ground OD of the inner ring and provide a positive seal against dirt and other contaminants while effectively retaining the lubricant
- Shroud-Seals provide extra effectiveness and protection
- Extra-wide design provides additional shaft support and extra-large grease capacity
- Spherical OD
Ball Bearing Insert
Wide Inner Ring - Greasable Standard Industrial / Agricultural Applications
G - KRRB Series
Tech Specs
Back To Top| Basic Outer Ring Size | 207 |
|---|---|
| Bearing I.D. | 1-1/4" |
| Bearing O.D. | 72mm |
| Bearing Type | Insert Bearing |
| Bore Shape | Round |
| Brand | Timken |
| Greasable / Sealed | Greasable |
| Inner Race | Wide |
| Inner Ring Width | 1-31/64 Inch |
| Outer Race Shape | Spherical |
| Outer Ring Width | .748 Inch |
| Shaft Lock Type | Lock Collar |
Application
Back To Top| Make | Type | Model |
|---|---|---|
| John Deere | Cotton Stripper | 7445, 7460, 748, CS690, CS770 |
Interchanges
Back To Top- AN220672 (JOHN DEERE)
- INS-SXR-104
- UG207-20
- 100828
- KMC33051063
- KMC33-051-063
- 156030C91 (CNH)
- 710434
- 1035-1-1/4DECG
- 173735C91 (CNH)
- EX207-20
- 520089
- 33-051-063
- EW207-20S
- 33051063
- VE220
- 1177309
- WPS104GRC
- 401CBA
- 1032225
- UEL207-104D1W3
- YW220X1-1/4
- 010-32225
- F86214
- YG220NL
