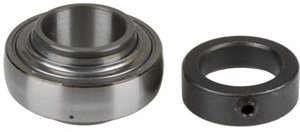

RELUBE INSERT BEARING-1-7/16" ID- WIDE INNER RING

Item Code: 308-G1107KRRB
Brand: Timken
Mfg Part No: G1107KRRB

Bearing I.D.

Bearing O.D.

Greasable / Sealed

Outer Race Shape

Description

Will replace Amadas 3175

Features Tech Specs Interchanges

Features

Ball Bearing Insert

Wide Inner Ring - Greasable Standard Industrial / Agricultural Applications

G - KRRB Series

Wide Inner Ring with Self Locking Collar
For extremely dirty or wet conditions
R-Seals with flared lips firmly contact the ground OD of the inner ring and provide a positive seal against dirt and other contaminants while effectively retaining the lubricant
Shroud-Seals provide extra effectiveness and protection
Extra-wide design provides additional shaft support and extra-large grease capacity
Spherical OD

Tech Specs

Basic Outer Ring Size	207
Bearing I.D.	1-7/16"
Bearing O.D.	72mm
Bearing Type	Insert Bearing
Bore Shape	Round
Brand	Timken
Greasable / Sealed	Greasable
Inner Race	Wide
Inner Ring Width	1-31/64 Inch
Outer Race Shape	Spherical
Outer Ring Width	.748 Inch
Shaft Lock Type	Lock Collar

Interchanges

Back To Top

WPS107GRC
FH711457
523042E
FHX393
520092
TPJD9430
711457
AM3175
585511R91 (CNH)
3175
AWPS107GRC
131574
KMC33-051-001
T25928
33051001
AA54K
KMC33051001
33-051-001
