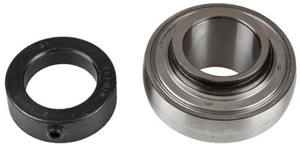

RELUBE INSERT BEARING-1-1/2" ID- WIDE INNER RING

Item Code: 308-G1108KRRB
Brand: Timken
Mfg Part No: G1108KRRB

Bearing I.D.

Bearing O.D.

Greasable / Sealed

Outer Race Shape

Description

Will replace JD9434, CNH 455111R91, 455113R91, Agco 71122510.

Features Tech Specs Interchanges

Features

Ball Bearing Insert

Wide Inner Ring - Greasable Standard Industrial / Agricultural Applications

G - KRRB Series

Wide Inner Ring with Self Locking Collar
For extremely dirty or wet conditions
R-Seals with flared lips firmly contact the ground OD of the inner ring and provide a positive seal against dirt and other contaminants while effectively retaining the lubricant
Shroud-Seals provide extra effectiveness and protection
Extra-wide design provides additional shaft support and extra-large grease capacity
Spherical OD

Tech Specs

Basic Outer Ring Size	208
Bearing I.D.	1-1/2"
Bearing O.D.	80mm
Bearing Type	Insert Bearing
Bore Shape	Round
Brand	Timken
Greasable / Sealed	Greasable
Inner Race	Wide
Inner Ring Width	1-11/16 Inch
Outer Race Shape	Spherical
Outer Ring Width	.827 Inch
Shaft Lock Type	Lock Collar

Interchanges

Back To Top

1014046
1014047
F84032
712059
467172R91 (CNH)
450627R91 (CNH)
51227
F21025
010-14047
AWPS108GRC
WPS108GRC
010-14046
10970
455113R91 (CNH)
834836M1 (AGCO)
JD9434
455111R91 (CNH)
AC10681
71122510
1925CSA
