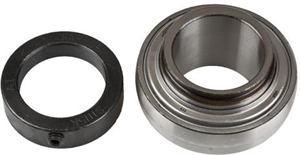

RELUBE INSERT BEARING-1-15/16" ID- WIDE INNER RING

Item Code: 308-G1115KRRB
Brand: Timken
Mfg Part No: G1115KRRB

Bearing I.D.

Bearing O.D.

Greasable / Sealed

Outer Race Shape

Description

For Late and Early Model Chopper Bearing Assemblies - Fits Forrest City Do-All

Features Tech Specs Interchanges

Features

Ball Bearing Insert

Wide Inner Ring - Greasable Standard Industrial / Agricultural Applications

G - KRRB Series

Wide Inner Ring with Self Locking Collar
For extremely dirty or wet conditions
R-Seals with flared lips firmly contact the ground OD of the inner ring and provide a positive seal against dirt and other contaminants while effectively retaining the lubricant
Shroud-Seals provide extra effectiveness and protection
Extra-wide design provides additional shaft support and extra-large grease capacity
Spherical OD

Tech Specs

Basic Outer Ring Size	210
Bearing I.D.	1-15/16"
Bearing O.D.	90mm
Bearing Type	Insert Bearing
Bore Shape	Round
Brand	Timken
Greasable / Sealed	Greasable
Inner Race	Wide
Inner Ring Width	1-15/16 Inch
Outer Race Shape	Spherical
Outer Ring Width	.903 Inch
Shaft Lock Type	Lock Collar

Interchanges

Back To Top

481215
KMC02-051-048
22602X
TPJD9454
02-051-048
608131R91 (CNH)
172408C91 (CNH)
KMC02051048
520171
WPS115GRC
3147
241798
14986
AWPS115GRC
2051048
3346
