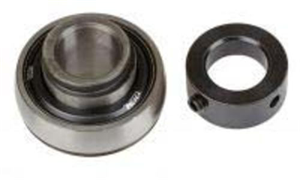

SEALED INSERT BEARING 5/8" ID - NARROW INNER RING

  • Item Code: 308-RA010RRB
  • Brand: Timken
  • Mfg Part No: RA010RRB

Description

Features Tech Specs Interchanges

Features

Back To Top

    Ball Bearing Insert

    Narrow Inner Ring - Sealed     Standard Agricultural Applications

    RA-RRB Series

    • Narrow Inner ring type with self-locking collar
    • Positive contact—land-riding R-Seal provides improved protection against harmful contaminants and retains lubricant under severe operation conditions
    • Factory pre-lubricated
    • Spherical OD for use in housings with corresponding spherical inside surface to unrestricted initial alignment

Tech Specs

Back To Top
Basic Outer Ring Size 203
Bearing I.D. 5/8"
Bearing O.D. 40mm
Bearing Type Insert Bearing
Bore Shape Round
Brand Timken
Greasable / Sealed Sealed
Inner Race Narrow
Inner Ring Width .750 Inch
Outer Race Shape Spherical
Outer Ring Width .472 Inch
Shaft Lock Type Lock Collar

Interchanges

Back To Top
  • SW5274
  • 710632
  • RA010NPPB
  • 468390R92 (CNH)
  • 832800M1 (AGCO)
  • 520150
  • 9112200
  • 530806
  • NPS010RPC
  • 14-50-004
  • 1450004
  • JD9288
  • 521150
  • R46666
  • 15-61-146
  • 1561146
  • 70530806
  • 11360
