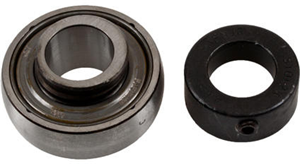

SEALED INSERT BEARING 3/4" ID - NARROW INNER RING

Item Code: 308-RA012RRB
Brand: Timken
Mfg Part No: RA012RRB

Bearing I.D.

Bearing O.D.

Shaft Lock Type

Greasable / Sealed

Outer Race Shape

Description

Features Tech Specs Application Interchanges

Features

Ball Bearing Insert

Narrow Inner Ring - Sealed Standard Agricultural Applications

RA-RRB Series

Narrow Inner ring type with self-locking collar
Positive contact—land-riding R-Seal provides improved protection against harmful contaminants and retains lubricant under severe operation conditions
Factory pre-lubricated
Spherical OD for use in housings with corresponding spherical inside surface to unrestricted initial alignment

Tech Specs

Basic Outer Ring Size	204
Bearing I.D.	3/4"
Bearing O.D.	47mm
Bearing Type	Insert Bearing
Bore Shape	Round
Brand	Timken
Greasable / Sealed	Sealed
Inner Race	Narrow
Inner Ring Width	.844 Inch
Outer Race Shape	Spherical
Outer Ring Width	.551 Inch
Shaft Lock Type	Lock Collar

Application

Back To Top

Make	Type	Model
John Deere	Planter	71 Flexi

Interchanges

Back To Top

NPS012RPC
500-01-942
895664L
TPJD9217
9-90186
17356
JD9217
711762
146077
F87326
SW5217
1011260
K3565
9110650
175032
455957R92 (CNH)
353114X1
2028772
TIS-F1619
TP-JD9217
RA012NPPB
400008ES
50001942
TISF1619
990186
B10700
010-11260
