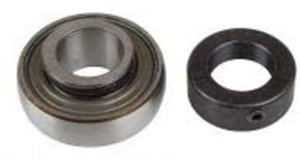

SEALED INSERT BEARING 7/8" ID - NARROW INNER RING
- Item Code: 308-RA014RRB
- Brand: Timken
- Mfg Part No: RA014RRB
Description
AMADAS #3102
Features
Back To Top- Narrow Inner ring type with self-locking collar
- Positive contact—land-riding R-Seal provides improved protection against harmful contaminants and retains lubricant under severe operation conditions
- Factory pre-lubricated
- Spherical OD for use in housings with corresponding spherical inside surface to unrestricted initial alignment
Ball Bearing Insert
Narrow Inner Ring - Sealed Standard Agricultural Applications
RA-RRB Series
Tech Specs
Back To Top| Basic Outer Ring Size | 205 |
|---|---|
| Bearing I.D. | 7/8" |
| Bearing O.D. | 52mm |
| Bearing Type | Insert Bearing |
| Bore Shape | Round |
| Brand | Timken |
| Greasable / Sealed | Sealed |
| Inner Race | Narrow |
| Inner Ring Width | .844 Inch |
| Outer Race Shape | Spherical |
| Outer Ring Width | .591 Inch |
| Shaft Lock Type | Lock Collar |
Application
Back To Top| Make | Type | Model |
|---|---|---|
| John Deere | Planter | 1750, 1755, 1770, 7000, 7000 Series, 7100, 7200, 7240, 7300, 7340, MaxEmerge, MaxEmerge 2 |
Interchanges
Back To Top- 834197M91 (AGCO)
- 564991R91 (CNH)
- AC10839
- F90306
- 10181
- 71308770
- 564991R92 (CNH)
- 834197M1 (AGCO)
- 1113372
- 260369
- TP-JD8562
- A564991R1
- 1308770
- 9-90019
- 15A3918A
- 41448
- Z389A
- 520145
- RA014NPPB
- TPJD8562
- NPS014RPC
- AM3102
- FH205-14
- 5923
- 147082
- 895963L
- 3102
- JD8562
- 50286
