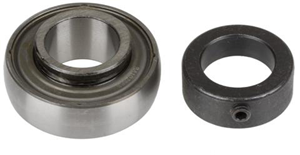

SEALED INSERT BEARING 1" ID - NARROW INNER RING
- Item Code: 308-RA100RRB
- Brand: Timken
- Mfg Part No: RA100RRB
Description
Features
Back To Top- Narrow Inner ring type with self-locking collar
- Positive contact—land-riding R-Seal provides improved protection against harmful contaminants and retains lubricant under severe operation conditions
- Factory pre-lubricated
- Spherical OD for use in housings with corresponding spherical inside surface to unrestricted initial alignment
Ball Bearing Insert
Narrow Inner Ring - Sealed Standard Agricultural Applications
RA-RRB Series
Tech Specs
Back To Top| Basic Outer Ring Size | 205 |
|---|---|
| Bearing I.D. | 1" |
| Bearing O.D. | 52mm |
| Bearing Type | Insert Bearing |
| Bore Shape | Round |
| Brand | Timken |
| Greasable / Sealed | Sealed |
| Inner Race | Narrow |
| Inner Ring Width | .844 Inch |
| Outer Race Shape | Spherical |
| Outer Ring Width | .591 Inch |
| Shaft Lock Type | Lock Collar |
Application
Back To Top| Make | Type | Model |
|---|---|---|
| John Deere | Planter | 1770NT, 1790, DB120, DB40, DB44, DB58, DB60, DB66, DB80, DB88, DB90 |
| Massey Ferguson | Combine | 750, 760, 850, 860 |
Interchanges
Back To Top- 204807C91 (CNH)
- 214366C91 (CNH)
- 455965R91 (CNH)
- 71308951 (AGCO)
- 834199M1 (AGCO)
- 834199M91 (AGCO)
- 842736M1 (AGCO)
- 842736M91 (AGCO)
- 84330070 (CNH)
- JD8555 (JOHN DEERE)
- JD8665 (JOHN DEERE)
