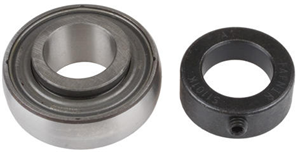

SEALED INSERT BEARING 1-1/16" ID - NARROW INNER RING

  • Item Code: 308-RA101RRB
  • Brand: Timken
  • Mfg Part No: RA101RRB

Description

Features Tech Specs Interchanges

Features

Back To Top

    Ball Bearing Insert

    Narrow Inner Ring - Sealed     Standard Agricultural Applications

    RA-RRB Series

    • Narrow Inner ring type with self-locking collar
    • Positive contact—land-riding R-Seal provides improved protection against harmful contaminants and retains lubricant under severe operation conditions
    • Factory pre-lubricated
    • Spherical OD for use in housings with corresponding spherical inside surface to unrestricted initial alignment

Tech Specs

Back To Top
Basic Outer Ring Size 206
Bearing I.D. 1-1/16"
Bearing O.D. 62mm
Bearing Type Insert Bearing
Bore Shape Round
Brand Timken
Greasable / Sealed Sealed
Inner Race Narrow
Inner Ring Width .938 Inch
Outer Race Shape Spherical
Outer Ring Width .709 Inch
Shaft Lock Type Lock Collar

Interchanges

Back To Top
  • NPS101RPC
  • Z529
  • 478656R92 (CNH)
  • ANPS101RPC
  • 124125
  • RA101NPPB
  • 353134X1
