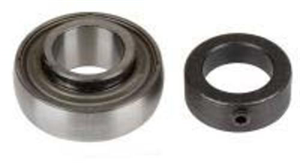

SEALED INSERT BEARING 1-1/8" ID - NARROW INNER RING
- Item Code: 308-RA102RRB
- Brand: Timken
- Mfg Part No: RA102RRB
Description
Will replace JD8552
Features
Back To Top- Narrow Inner ring type with self-locking collar
- Positive contact—land-riding R-Seal provides improved protection against harmful contaminants and retains lubricant under severe operation conditions
- Factory pre-lubricated
- Spherical OD for use in housings with corresponding spherical inside surface to unrestricted initial alignment
Ball Bearing Insert
Narrow Inner Ring - Sealed Standard Agricultural Applications
RA-RRB Series
Tech Specs
Back To Top| Basic Outer Ring Size | 206 |
|---|---|
| Bearing I.D. | 1-1/8" |
| Bearing O.D. | 62mm |
| Bearing Type | Insert Bearing |
| Bore Shape | Round |
| Brand | Timken |
| Greasable / Sealed | Sealed |
| Inner Race | Narrow |
| Inner Ring Width | .938 Inch |
| Outer Race Shape | Spherical |
| Outer Ring Width | .709 Inch |
| Shaft Lock Type | Lock Collar |
Application
Back To Top| Make | Type | Model |
|---|---|---|
| John Deere | Corn Head | 1253A, 453A, 454A, 653A, 654A, 655A, 853A, 854A |
| John Deere | Row Crop Head | 1253A, 453A, 454A, 653A, 654A, 655A, 853A, 854A |
Interchanges
Back To Top- 455960R91 (CNH)
- 831929M91 (AGCO)
- 505432E
- 520157
- AP3656
- A455960R1
- 74414
- 713164
- JD8552 (JOHN DEERE)
- 455960R92 (CNH)
- AC11383
- RA102NPPB
- 832441M1 (AGCO)
- 831929M1 (AGCO)
- 168639
- 541568
- 15A7471A
- 15-50-124
- Z522A
- 360101V1
- 7441-4
- NPS102RPC
- TP-JD8552
- 1130100
- 301153E
- 50476
- 9-90070
- 1550124
- ARA102NPPB
- 70590709
- 990070
- 50006364
- 45882
- T36576
- 1443CKA
- K3501
- TPJD8552
- 301152ES
- 1308973
