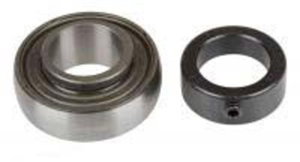

SEALED INSERT BEARING 1-3/16" ID - NARROW INNER RING

Item Code: 308-RA103RRB
Brand: Timken
Mfg Part No: RA103RRB

Bearing I.D.

Bearing O.D.

Shaft Lock Type

Greasable / Sealed

Outer Race Shape

Description

KMC # 3096 / 03-051-002

Features Tech Specs Interchanges

Features

Ball Bearing Insert

Narrow Inner Ring - Sealed Standard Agricultural Applications

RA-RRB Series

Narrow Inner ring type with self-locking collar
Positive contact—land-riding R-Seal provides improved protection against harmful contaminants and retains lubricant under severe operation conditions
Factory pre-lubricated
Spherical OD for use in housings with corresponding spherical inside surface to unrestricted initial alignment

Tech Specs

Basic Outer Ring Size	206
Bearing I.D.	1-3/16"
Bearing O.D.	62mm
Bearing Type	Insert Bearing
Bore Shape	Round
Brand	Timken
Greasable / Sealed	Sealed
Inner Race	Narrow
Inner Ring Width	.938 Inch
Outer Race Shape	Spherical
Outer Ring Width	.709 Inch
Shaft Lock Type	Lock Collar

Interchanges

Back To Top

71150087
RA103NPPB
51284
7441-5
KMC03051002
TPJD9219
KMC03-051-002
AM3096
03-051-002
834202M1 (AGCO)
N3382
3096
566634R92 (CNH)
3051002
74415
NPS103RPC
353161X1
JD9219
9110330
9-90061
TP-JD9219
990061
X5615
