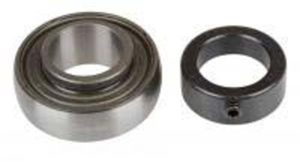

SEALED INSERT BEARING 1-1/4" ID - NARROW INNER RING

Item Code: 308-RA103RRB2
Brand: Timken
Mfg Part No: RA103RRB2

Bearing I.D.

Bearing O.D.

Shaft Lock Type

Greasable / Sealed

Outer Race Shape

Description

Features Tech Specs Interchanges

Features

Ball Bearing Insert

Narrow Inner Ring - Sealed Standard Agricultural Applications

RA-RRB Series

Narrow Inner ring type with self-locking collar
Positive contact—land-riding R-Seal provides improved protection against harmful contaminants and retains lubricant under severe operation conditions
Factory pre-lubricated
Spherical OD for use in housings with corresponding spherical inside surface to unrestricted initial alignment

Tech Specs

Basic Outer Ring Size	206
Bearing I.D.	1-1/4"
Bearing O.D.	62mm
Bearing Type	Insert Bearing
Bore Shape	Round
Brand	Timken
Greasable / Sealed	Sealed
Inner Race	Narrow
Inner Ring Width	.938 Inch
Outer Race Shape	Spherical
Outer Ring Width	.709 Inch
Shaft Lock Type	Lock Collar
