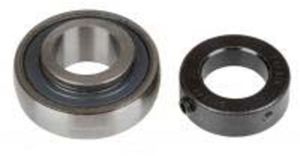

SEALED INSERT BEARING 1-1/4" ID - NARROW INNER RING

Item Code: 308-RA104RRB
Brand: Timken
Mfg Part No: RA104RRB

Bearing I.D.

Bearing O.D.

Shaft Lock Type

Greasable / Sealed

Outer Race Shape

Description

KMC # 03-051-016

Features Tech Specs Application Interchanges

Features

Ball Bearing Insert

Narrow Inner Ring - Sealed Standard Agricultural Applications

RA-RRB Series

Narrow Inner ring type with self-locking collar
Positive contact—land-riding R-Seal provides improved protection against harmful contaminants and retains lubricant under severe operation conditions
Factory pre-lubricated
Spherical OD for use in housings with corresponding spherical inside surface to unrestricted initial alignment

Tech Specs

Basic Outer Ring Size	207
Bearing I.D.	1-1/4"
Bearing O.D.	72mm
Bearing Type	Insert Bearing
Bore Shape	Round
Brand	Timken
Greasable / Sealed	Sealed
Inner Race	Narrow
Inner Ring Width	1.00 Inch
Outer Race Shape	Spherical
Outer Ring Width	.748 Inch
Shaft Lock Type	Lock Collar

Application

Back To Top

Make	Type	Model
Massey Ferguson	Combine	82
Massey Ferguson	Corn Head	1134, 1143, 1144, 1153, 1163, 1164, 1183, 24, 33, 34, 43, 44, 44-0, 54C, 62, 63, 63C, 64, 83
