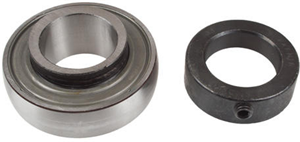

SEALED INSERT BEARING 1-1/2" ID - NARROW INNER RING

  • Item Code: 308-RA108RRB
  • Brand: Timken
  • Mfg Part No: RA108RRB

Description

Used on Vermeer Baler.

Features

Back To Top

    Ball Bearing Insert

    Narrow Inner Ring - Sealed     Standard Agricultural Applications

    RA-RRB Series

    • Narrow Inner ring type with self-locking collar
    • Positive contact—land-riding R-Seal provides improved protection against harmful contaminants and retains lubricant under severe operation conditions
    • Factory pre-lubricated
    • Spherical OD for use in housings with corresponding spherical inside surface to unrestricted initial alignment

Tech Specs

Back To Top
Basic Outer Ring Size 208
Bearing I.D. 1-1/2"
Bearing O.D. 80mm
Bearing Type Insert Bearing
Bore Shape Round
Brand Timken
Greasable / Sealed Sealed
Inner Race Narrow
Inner Ring Width 1.188 Inch
Outer Race Shape Spherical
Outer Ring Width .827 Inch
Shaft Lock Type Lock Collar

Application

Back To Top
MakeTypeModel
Ford_New HollandHay Baler640, 644, 648, 650, 654, 658, 660, 664, 678, 688

Interchanges

Back To Top
  • 664175R92 (CNH)
  • K4962
  • 9202
  • 832122M1 (AGCO)
  • 832122M91 (AGCO)
  • 833416M1 (AGCO)
  • NPS108RPC
  • 990073
  • 6050-089
  • 212-001-BRG
  • 50488
  • 15A16808
  • YET208108W
  • 6050089
  • 52443
  • TPJD9202
  • JD9202
  • 212001BRG
  • 9-90073
  • 141356
  • A050468
  • TP-JD9202
  • 50468
  • RA108NPPB
  • 241565
  • C26320
  • ARA108NPPB
  • 403960D
  • FH050468
  • L4972
