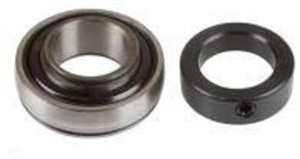

SEALED INSERT BEARING 1-3/4" ID - NARROW INNER RING
- Item Code: 308-RA112RRB
- Brand: Timken
- Mfg Part No: RA112RRB
Description
Features
Back To Top- Narrow Inner ring type with self-locking collar
- Positive contact—land-riding R-Seal provides improved protection against harmful contaminants and retains lubricant under severe operation conditions
- Factory pre-lubricated
- Spherical OD for use in housings with corresponding spherical inside surface to unrestricted initial alignment
Ball Bearing Insert
Narrow Inner Ring - Sealed Standard Agricultural Applications
RA-RRB Series
Tech Specs
Back To Top| Basic Outer Ring Size | 209 |
|---|---|
| Bearing I.D. | 1-3/4" |
| Bearing O.D. | 85mm |
| Bearing Type | Insert Bearing |
| Bore Shape | Round |
| Brand | Timken |
| Greasable / Sealed | Sealed |
| Inner Race | Narrow |
| Inner Ring Width | 1.188 Inch |
| Outer Race Shape | Spherical |
| Outer Ring Width | .866 Inch |
| Shaft Lock Type | Lock Collar |
Interchanges
Back To Top- FH051318
- 3616
- ANPS112RPC
- 47298
- 668719R92 (CNH)
- FH05041
- 133941
- 1550019
- TPAE12601
- 842625M1 (AGCO)
- 175102
- 403961D
- 51381
- 71130250
- RA112NPPB
- 51557
- 51318
- 1130250
- 15-50-019
- TP-AE12601
- SW1975
