Rotary Cutter Gear Box - 6-Spline Input, 40 Horsepower
Price Breaks
Description
Features

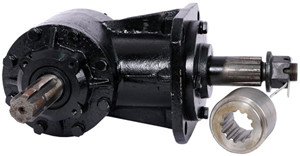

Back To TopThis heavy-duty gear box is designed to be an easy and quick replacement for multiple makes and models of rotary cutters. The cast iron construction, heat treated bevel gears, and painted exterior make replacement a breeze.
Tech Specs
Back To Top| Gear Ratio | 1 to 1.47 |
|---|---|
| Gear Type | Bevel Gear |
| Input Shaft | 1-3/8 Inch 6-Spline x 3-7/8 Inch Long |
| Max RPM | 540 RPM |
| Mounting Hole Diameter | 5/8 Inch |
| Mounting Hole Layout | Four 5/8" Holes on 6-1/2" Circle and 5" Center |
| Output Shaft | 1-1/2 Inch 12-Spline x 4-1/2 Inch Long |
| Rated Horsepower | 40 HP |
| Uses Blade Hub | 89754 |
| Uses Castle Nut | 102241 |
Interchanges
Back To Top- 49332
- 781-HC01609
- 401-0171
- 023-49332
