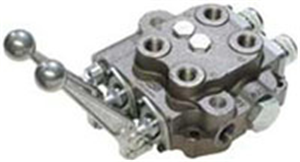

2 SPOOL HYDRAULIC VALVE, OPEN CENTER
Description
2 Spool (SBA22) Open Center Hydraulic Control Valve. Version Of 136250 (SBA-2-2) Special O-Ring Threads 1-1/16-12 ORB In-Out -- 3/4 -16 ORB Work BA211AAG3ECO
Tech Specs
Back To TopBrand | Cross |
---|---|
Handle | Comes With Handles |
Hydraulic Systems | Open |
Max Flow | 30 GPM |
Number of Valve Spools | 2 |
Outlet Location | End Outlet |
Port Size | Inlet And Outlet 1-1/16 Inch-12 Sae #12, Working Ports 3/4 Inch-16 Sae #8 |
Power Beyond Port | Conversion Plug |
Relief Port | Adjustable 1500-2500 PSI (Set At 2000 PSI) |
Spool 1 Action | 3 Position Spring Centered |
Spool 1 Specification | 4 Way, 3 Position, Open Center |
Spool 2 Action | 3 Position Spring Centered |
Spool 2 Specification | 4 Way, 3 Position, Open Center |
