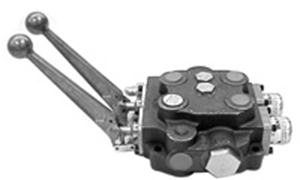

2 SPOOL HYDRAULIC VALVE, CLOSED CENTER

Price Breaks

Description

2 Spool with Float Position (SBAF2CC) Closed Center Hydraulic Control Valve; First Spool-4-way, 4 position; Second Spool-4-way, 3 position; Spring Centering both spools; With End Ports; No relief; Comes with Handle; Float Position allows blade or bucket of loader to ride the contours of the ground.

Features Interchanges

Features

Back To Top

    Features:

    • 2500 PSI Operating Pressure
    • 30 GPM Flow Rate
    • First Spool 4-Way 4-Position
    • Second Spool 4-Way 3-Position
    • Spring Centering
    • Adjustable Relief Set at 2000 PSI
    • End Ports
    • Power-Up / Power-Down
    • Handles Included

Tech Specs

Back To Top
Brand Cross
Handle Comes With Handles
Hydraulic Systems Closed
Max Flow 30 GPM
Number of Valve Spools 2
Outlet Location End Outlet
Port Size Inlet And Outlet 3/4 Inch Nptf, Working Ports 1/2 Inch Nptf
Power Beyond Port Closed Center Plug
Relief Port No Relief Port
Spool 1 Action 4 Position, Spring Centering To Neutral, Float Position Detent
Spool 1 Specification 4 Way, 4 Position, Closed Center, Detent Float Position
Spool 2 Action 3 Position Spring Centered
Spool 2 Specification 4 Way, 3 Position

Interchanges

Back To Top
  • SBA-F2CC
  • ASBAF2CC
  • 196144589
  • 144589
  • 196-144589
  • SBAF2CC
