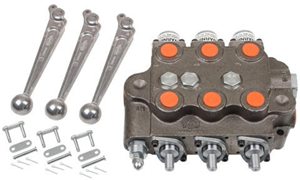

3 SPOOL HYDRAULIC VALVE, OPEN CENTER
Price Breaks
Description
3 Spool (SBA222) Open Center Hydraulic Control Valve; 4-way, 3 position; Spring Centering; With End Ports; Adjustable relief pressure 1500-2500 PSI; Comes with Handle; For operating double-acting cylinders . BA3111AAAGEA0
Features
Back To Top- 2500 PSI Operating Pressure
- 30 GPM Flow Rate
- All Spools 4-Way 3-Position
- Spring Centering
- Adjustable Relief Set at 2000 PSI
- End Ports
- Power-Up / Power-Down
- Handles Included
Features:
Tech Specs
Back To Top| Brand | Cross |
|---|---|
| Handle | Comes With Handles |
| Hydraulic Systems | Open |
| Max Flow | 30 GPM |
| Number of Valve Spools | 3 |
| Outlet Location | End Outlet |
| Port Size | Inlet And Outlet 3/4 Inch Nptf, Working Ports 1/2 Inch Nptf |
| Power Beyond Port | Conversion Plug |
| Relief Port | Adjustable 1500-2500 PSI (Set At 2000 PSI) |
| Spool 1 Action | 3 Position Spring Centered |
| Spool 1 Specification | 4 Way, 3 Position, Open Center |
| Spool 2 Action | 3 Position Spring Centered |
| Spool 2 Specification | 4 Way, 3 Position, Open Center |
| Spool 3 Action | 3 Position Spring Centered |
| Spool 3 Specification | 4 Way, 3 Position, Open Center |
