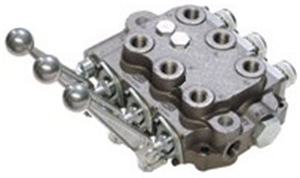

3 SPOOL HYDRAULIC VALVE, OPEN CENTER
Price Breaks
Description
3 Spool (BA3333) Open Center Hydraulic Control Valve for Rotary Mowers; 3-way, 3 position; Spring Centering, 1st and 3rd Spool In Detent; With End Ports; Adjustable relief pressure 1500-2500 PSI; Comes with Handle BA3333NANG3EA0
Tech Specs
Back To Top| Brand | Cross |
|---|---|
| Handle | Comes With Handles |
| Hydraulic Systems | Open |
| Max Flow | 30 GPM |
| Number of Valve Spools | 3 |
| Outlet Location | End Outlet |
| Port Size | Inlet And Outlet 3/4 Inch Nptf, Working Ports 1/2 Inch Nptf |
| Power Beyond Port | Conversion Plug |
| Relief Port | Adjustable 1500-2500 PSI (Set At 2000 PSI) |
| Spool 1 Action | 1 Position Detent InchIn Inch, Spring Centering |
| Spool 1 Specification | 3 Way, 3 Position, Open Center |
| Spool 2 Action | 3 Position Spring Centered |
| Spool 2 Specification | 3 Way, 3 Position, Open Center |
| Spool 3 Action | 1 Position Detent InchIn Inch, Spring Centering |
| Spool 3 Specification | 3 Way, 3 Position, Open Center |
Interchanges
Back To Top- A11161BH
- 11161
- 262-1160
- BA3333
