KX7 TOUGHTHRESH KIT FOR CORN AND SOYBEANS - FITS CASE IH MID-RANGE SERIES

Price Breaks

Description

Kit Configuration
Quantity Part # Description Position
1 300-BA1L05 Front Lip
1 300-BA1X05 Max Thresh Row 1
5 300-BA1R05 Max Round Rows 2 - 6

Kit Components

300-BA1L05 - KX7 FRONT LIP FRAME FOR CASE IH MID-RANGE SERIES
Required: 1
Login for Availability
300-BA1X05 - KX7 MAXTHRESH BOX FOR CASE IH MID-RANGE SERIES
Required: 1
Login for Availability
300-BA1R05 - KX7 MAXROUND BOX FOR CASE IH MID-RANGE SERIES
Required: 5
Login for Availability

Features

Back To Top

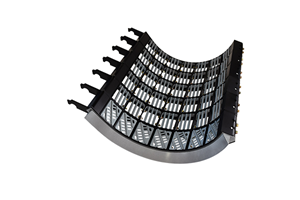

    A Closer Look at KX7 Concaves

    MaxThresh™ & MaxRound™ — the Perfect Pair

    KX7 MaxThresh concaves deliver a better, faster thresh than large-wire or small-wire concaves. This comes from the angled-bar design that meets the crop head on. This is more aggressive than traditional concaves, while our laser cladding additive both protects from wear and rounds the edge to soften contact. By placing MaxThresh assemblies in the frontmost positions, you’ll achieve earlier threshing that allows for more separation as your crop flows through the chamber.

    KX7 MaxRound concaves also feature an angled-bar design to offer some threshing, though their main function is separation. They’ve proven very effective in preventing plugging, which in turn lowers rotor loss. With heat-treated bars, MaxRound concaves will not only outperform, but outlast traditional round-bar concaves. MaxRound assemblies should always be placed behind MaxThresh concaves to maximize separation.

Tech Specs

Back To Top
Brand KONDEX

Application

Back To Top
MakeTypeModel
Case IHCombine1680, 1682, 1688, 2188, 2377, 2388, 2577, 2588, 5088, 5130, 5140, 5150, 6088, 6130, 6140, 6150, 7088, 7130, 7140, 7150, Mid Range Series

Interchanges

Back To Top
  • 716043
