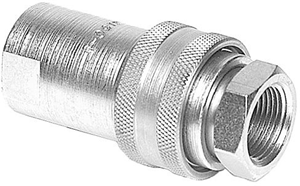

4000 SERIES QUICK COUPLER WITH POPPET TIP - 1/4" BODY x 1/4"-18 NPT THREAD

Price Breaks

Multiple: 5

Features

Back To Top

    4000 Series  - Manual Sleeve Design

    Complete Coupler

    The 4000 Series brings to the industry a proven design for use on agricultural machinery and other rugged applications.

    Protective dust plugs and caps play a crucial role in the life of a quick coupling and no purchase of a hydraulic quick coupling is complete without the selection of an appropriate dust plug and cap

    • Accepts ISO 5675 Standard universal tips
    • Basic operation where coupler sleeve is manually retracted to allow connection with male tip
    • Critical parts are induction hardened
    • Ball and poppet valve options
    • Protective zinc plating with clear trivalent chromate finish

Tech Specs

Back To Top
Ball or Poppet Valve Poppet
Brand Pioneer
Connect Under Pressure No
Coupler Body / Coupler Tip 4050-2P / 4010-2P
Coupler Body Size 1/4 Inch
Coupler Clamp Series Not Available
Dust Cap Series 5209-2M Series
Dust Plug Series 5205-2M Series
Largest Diameter 1.50 Inch
Max PSI 3000 PSI
Package Type Bulk Stock
Rated Flow 3 GPM
Sleeve Operation Manual Connect
Thread Size 1/4 - 18 NPTF
Wrench Flats 7/8 Inch

Documents & Guides

Back To Top
Spec Sheets

Interchanges

Back To Top
  • C59-0020
  • MW4000-2
  • 4000-2
  • 40002
  • 4000-2P
  • C590020
  • A40002P
