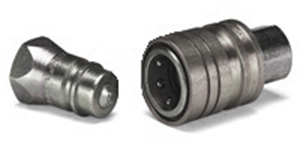

4200 SERIES PUSH TO CONNECT QUICK COUPLER WITH TIP - POPPET VALVE - 3/8" BODY x 3/8" NPT

Price Breaks

Multiple: 5

Features

Back To Top

    4200 Series  - Push to Connect Sleeve Design

    Complete Coupler

    The 4200 Series brings to the industry a proven design for use on agricultural machinery and other rugged applications where a breakaway feature is desirable.

    Protective dust plugs and caps play a crucial role in the life of a quick coupling and no purchase of a hydraulic quick coupling is complete without the selection of an appropriate dust plug and cap

    • Accepts ISO 5675 Standard universal tips
    • Grooves in sleeve to accommodate retaining rings for bulkhead mounting
    • One-handed push-to-connect operation when coupler is clamp mounted
    • 1/2” body size couplers are compatible with 5001-4 and 5006-4 breakaway clamps
    • Critical parts are induction hardened
    • Series has Ball and Poppet valve options
    • Protective zinc plating with clear trivalent chromate finish

Tech Specs

Back To Top
Ball or Poppet Valve Poppet
Brand Pioneer
Connect Under Pressure No
Coupler Body / Coupler Tip 4250-3P / 4010-3P
Coupler Body Size 3/8 Inch
Coupler Clamp Series Not Available
Dust Cap Series 5209-3M
Dust Plug Series 5205-3M
Largest Diameter 1.31 Inch
Max PSI 3000 PSI
Package Type Bulk Stock
Rated Flow 6 GPM
Sleeve Operation Push to Connect
Thread Size 3/8 - 18 NPT
Wrench Flats 13/16 Inch
