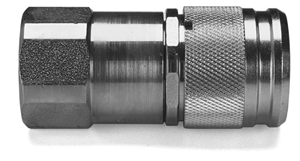

1/2'' FLUSH FACE COUPLER BODY - 7/8"-14 ORB THREAD
Features
Back To Top- Flush, non-spill valving
- Global interchangeability with other ISO 16028 compliant couplings
- Hardened steel sleeves and nipple bodies
- Blow-out resistant seal
- Connect-under-pressure nipple option
- Protective zinc plating with clear trivalent chromate finish
FEM Series - Flush Face / Non-Spill
Skid Steer / Construction Coupler Body
FEM Series couplings meet or exceed ISO 16028 design and performance requirements. The flush valves eliminate spillage and air inclusion when connecting and disconnecting.
Coupler and nipple bodies have a modular design with increased flexibility for end port options.
Tech Specs
Back To TopBrand | Pioneer |
---|---|
Connect Under Pressure | No |
Coupler Body Size | 1/2" |
Dust Cap Series | CFE-502-PN / PFE501-PN |
Largest Diameter | 1.54" |
Length | 2.96" |
Max PSI | 3625 PSI |
Package Type | VisiPack |
Rated Flow | 12 GPM |
Sleeve Operation | Push to Connect |
Thread Size | 7/8 - 14 ORB |
Wrench Flats | 1-1/4" |
Application
Back To TopMake | Type | Model |
---|---|---|
ASV | Skidsteer Loader | RC50, RC60, RC85 |
Bobcat | Skidsteer Loader | 463, 553, 753, 763 |
Case | Skidsteer Loader | 410, 420, 430, 435, 440, 445, 450, 465 |
Caterpillar | Skidsteer Loader | 216B, 226B, 232B, 236B, 242B, 246B, 248B, 252B, 262B, 268B |
Ford_New Holland | Skidsteer Loader | LS140, LS150, LS160, LS170, LS180, LS185, LS190 |
Thomas Equipment | Skidsteer Loader | 105, 137, 153, 175, 205, 250, 320, 85 |
Volvo | Skidsteer Loader | MC60, MC70, MC80 |
Interchanges
Back To Top- FEM-501-10FO-NL
- FF08-S78F
