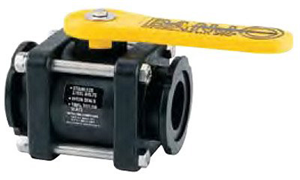

1" FULL PORT VALVE MANIFOLD BALL VALVE

Price Breaks
Features Documents & Guides Interchanges

Features

Back To Top
    Features:
    • FKM (Viton® type) seals.
    • PTFE self-lubricating stem bush­ings and seats cannot stick or bind.
    • Precision molded in polypropylene. Polypropylene is reinforced with fiberglass for additional strength.
    • Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle.
    • Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats.

Tech Specs

Back To Top
Ball Valve Type Standard Valve - Bolted
Brand Banjo
Connection Manifold
Connection Size 1 Inch
Connection Specification 1 Inch Manifold x 1 Inch Manifold
Material Poly
Port Opening 1 inch
Port Size Standard Port
Spray Valve Category Ball Valves - Manual
Spray Valve Type Manual Valves
UPC 791206008678

Documents & Guides

Back To Top
Spec Sheets

Interchanges

Back To Top
  • 102100MVCF
