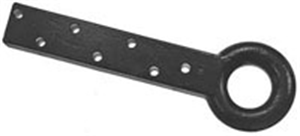

BOLT ON DRAWBAR FORGED TOW RING ASSEMBLY - 3" RING 22,000 LB CAPACITY
Price Breaks
Description
DO NOT weld or modify Tow Rings
Features
Back To TopForged Bolt On Steel Drawbar Tow-Ring - 3"
The Bolt-On Forged Steel Drawbar is a tough, durable product ideal for towing a variety of specialty equipment. It can be removed and adjusted into position on the trailer tongue to give you the flexibility you need when working with on- and off-road trailers.
Adjustable bolt pattern accommodates a variety of towing applications.
Tech Specs
Back To Top| Capacity | 22,000 Lbs. |
|---|---|
| Capacity Range | 20,000 - 49,000 Lbs |
| Max Vertical Load | 4,500 Lbs. |
| Product Type | Rigid Mount Tow Rings |
| Ring Thickness | 1-5/8 Inch |
| Shank Length | 17-1/4 Inch |
| Shank Thickness | 1-5/8 Inch |
| Tow Ring Size | 3 Inch |
