STANDARD SERIES METRIC DRIVELINE - BYPY SERIES 4 - 36" COMPRESSED LENGTH - HAS FRICTION CLUTCH - FOR ROTARY CUTTER AND TILLLER GENERAL APPLICATIONS
Price Breaks
Features
Back To Top- Design adjustability (cut-to-length) capabilities.
- Interchangeability to fit with most competitor models.
- Tri-lobe shaft profiles
- Standard guard construction without Easy Lock allows assembly or removal with a screwdriver.
- Available with Standard bearing kits requiring regular lubrication.

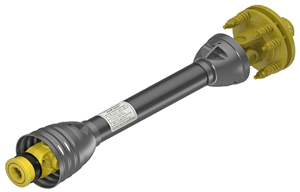

Weasler Standard PTO Drive Shafts
Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for intermittent or light-duty all-purpose use and meet the requirements of small farms and consumers.
The metric product line offering of PTO drive shafts meets the power transmission needs of many applications.
Tech Specs
Back To Top| Bondioli-Pavesi PTO Series | 4 |
|---|---|
| Brand | Weasler |
| Clutch Torque Rating | 8,000 in*pounds |
| Compressed Overall Length | 36.00 Inches |
| Cross & Bearing Cap Diameter | 1.06 Inch / 27.0mm |
| Cross & Bearing Overall Length | 2.94 Inch / 74.60mm |
| Driveshaft Application | Rotary Cutter/Tiller |
| Driveshaft Implement End | 1-3/8" 6 Spline Friction Clutch |
| Implement Yoke Part Number | 563-8406-03 |
| PTO Product Category | Driveshaft |
| PTO Product Sub Category | Complete Drive Shaft |
| PTO Tubing Shape | Trilobe Tube |
| Tractor Yoke Lock Type | Safety Slide Lock |
| Tractor Yoke Part Number | 101-8406 |
| Tractor Yoke Size | 1-3/8" 6 Spline |
| Weasler Brand Series | Standard |
Application
Back To Top| Make | Type | Model |
|---|---|---|
| Behlin | Rotary Tiller | 80118030ORG, 80118040YEL, 80118050YEL, 80118060YEL |
| Bush Hog | Rotary Tiller | RT60G, RT60GR, RT72G, RT72GR, RT84G, RT84GR, RTM, RTN, RTS |
| Howse | Rotary Tiller | RTC48, RTC62, RTC70, RTR85, UH84, UL48, UM60, UM72 |
| John Deere | Rotary Tiller | TG-48, TG-72Y, TH-60Y |
| King Kutter | Rotary Cutter | L-60-40-SC, L-60-60-SC |
| King Kutter | Rotary Tiller | RTG-60, RTG-72, TG-48-XB, TG-54-XBX, TG-60, TG-72, TG-84, TG-G-48, TG-G-60, TG-G-72, TG-G-84 |
| Tarter | Rotary Tiller | RT205BL, RT206BL, RT207BL, RTC48, UL48 |
