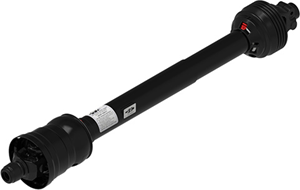

CV DRIVELINE - CV CAT 6 - 55" COMPRESSED LENGTH - 55 SERIES SPLINED SHAFTING - 1-3/8 21 SPLINE TRACTOR YOKE
Features
Back To TopCategory 6 CV Drive Shaft
55 Series North American
The Weasler high performance CV Wide Angle PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler CV Wide Angle PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.
Tech Specs
Back To TopBrand | Weasler |
---|---|
Compressed Overall Length | 55.00 Inches |
Cross & Bearing Cap Diameter | 1-17/32 Inch / 38.86mm |
Cross & Bearing Overall Length | 4-5/16 Inch / 109.55mm |
CV Category | Cat 6 |
Driveshaft Application | All Purpose |
Driveshaft Implement End | 1-3/8" - 6 Spline Clamp Yoke |
Implement Yoke Part Number | 807-5506 |
North American PTO Series | 55 |
PTO Product Category | Driveshaft |
PTO Product Sub Category | CV Complete Drive Shaft |
PTO Tubing Shape | Splined Shaft |
Splined Shafting Size | 1-11/16 20 Spline |
Tractor Yoke Lock Type | Auto-Lok |
Tractor Yoke Part Number | 111-6821 |
Tractor Yoke Size | 1-3/8" 21 Spline |
UPC | 728357115658 |
Interchanges
Back To Top- 76231
- 58754
- 19465
- 55N3601
- 971-14605555
- 14605555
- 86677
