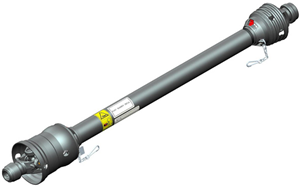

METRIC COMPLETE CV DRIVELINE - CAT 6 CV - WALTERCHEID SERIES 2580 STAR TUBING - 51" COMPRESSED LENGTH - FITS SERVIS RHINO FLEX WING MOWER 1-3/4 x 20 SPLINE TRACTOR YOKE
Description
Half Shafts = 9314706851 and 9214506851
Features
Back To TopCategory 6 CV Drive Shaft - 2580 Waltersheid Series
Fits Servis-Rhino Flex Wing Mowers
The Weasler high performance CV Wide Angle PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler CV Wide Angle PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.
Tech Specs
Back To Top| Brand | Weasler |
|---|---|
| Compressed Overall Length | 55.00 Inches |
| Cross & Bearing Cap Diameter | 1.38 Inch / 34.90mm |
| Cross & Bearing Overall Length | 4.20 Inch / 106.50 mm |
| CV Category | Cat 6 |
| Driveshaft Application | Flex Wing Mower |
| Driveshaft Implement End | 1-3/4"-20 Spline Clamp Yoke |
| Half Shaft - Implement End | 971-9214506851 |
| Half Shaft - Tractor End | 971-9314706851 |
| Implement Yoke Part Number | 807-7920 |
| PTO Product Category | Driveshaft |
| PTO Product Sub Category | CV Complete Drive Shaft |
| PTO Tubing Shape | Star Tube |
| Tractor Yoke Lock Type | Auto-Lok |
| Tractor Yoke Part Number | 111-6820 |
| Tractor Yoke Size | 1-3/4" 20 Spline |
| Tube or Shaft Size | 51.00 MM Shaft |
| Walterscheid Metric PTO Series | 2580 |
Application
Back To Top| Make | Type | Model |
|---|---|---|
| Rhino | Rotary Cutter | FL14, FL20, Flex 10, Flex 15, FR10, FR15, SE15-4A, SR10, SR10M, SR14, SR15, SR15M, SR20 |
Interchanges
Back To Top- 00763554
- 14707951
- AW258012100303A
- 35172151
- 971-14707951
- 658-35172151
