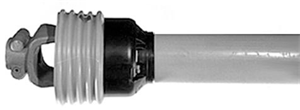

CV IMPLEMENT HALF SHAFT FOR BUSH HOG AND JOHN DEERE MOWERS - WALTERSCHEID 2500 STAR TUBING - CV CAT 6
Price Breaks
Description
Has 1-3/4 X 20 Spline Clamp Yoke
Features
Back To TopCategory 6 CV Implement Side Half Shaft - 2500 Series Waltercheid
Fits Bush Hog and John Deere Flex Wing Mowers and Peanut Harvesters
Tech Specs
Back To Top| Brand | Weasler |
|---|---|
| Compressed Overall Length | 34.625 Inches |
| Cross & Bearing Cap Diameter | 1.38 Inch / 34.90mm |
| Cross & Bearing Overall Length | 4.20 Inch / 106.50 mm |
| CV Category | Cat 6 |
| Driveshaft Application | Flex Wing Mower |
| Driveshaft Implement End | 1-3/4"-20 Spline Clamp Yoke |
| Implement Yoke Part Number | 807-7920 |
| PTO Product Category | Driveshaft |
| PTO Product Sub Category | CV Half Shaft |
| PTO Tubing Shape | Star Tube |
| Tube or Shaft Size | 61.00 MM Tube |
| Walterscheid Metric PTO Series | 2580 |
Application
Back To Top| Make | Type | Model |
|---|---|---|
| John Deere | Rotary Cutter | 1517, 1518, 2018, CX15, CX20, HX15, HX20 |
Interchanges
Back To Top- AW2580MA121003A
- 92-14517955
- 9719214517955
- 9214517955
- WS805520CS
- 971-9214517955
- 92-14516855
