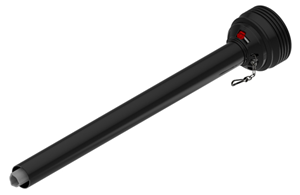

SERIES 4 BONDIOLI PAVESI TRILOBE STYLE CV IMPLEMENT HALF SHAFT

Price Breaks

Description

Order Implement Side U-Joint and Yoke Seperately as Required

Features

Back To Top

    Metric Tri-Lobe Implement Half Shaft

    Common Applications:  Round Balers / Flex Wing Mowers / Hay Rakes / Tedders / Sprayers

    Series 4

    • Weasler CV's Now Equipped with Italian Bondioli Style Tri-Lobe Tubing
    • Service a Very Significant Field Population of machines equipped with Italian CV Shafts
    • Weasler CV has Fully Enclosed Center Housing with Patented Ball and Socket System = Highler Performance and Longer Life
    • Light Weight and Compact CV Desing for handling ease and easy access for all Greasing Locations
    • Easy OFF / Easy ON CV  carries Patented and User-Friendly Easy Lock Guard System

    Tractor Side Shafts:

    • 93-14586460 - 1-3/8 x 6 Spline Tractor Yoke
    • 93-15686460 - 1-3/8 x 21 Spline Tractor Yoke

Tech Specs

Back To Top
Bondioli-Pavesi PTO Series 4
Brand Weasler
Compressed Overall Length 41.00 Inches
Cross & Bearing Cap Diameter 1.06 Inch / 27.0mm
Cross & Bearing Overall Length 2.94 Inch / 74.60mm
Driveshaft Application Round Balers/ Flexwing Mowers/ Hay Rakes/ Tedders/ Sprayers
Driveshaft Implement End Minus End Yoke
PTO Product Category Driveshaft
PTO Product Sub Category CV Half Shaft
PTO Tubing Shape Trilobe Tube
Tube or Shaft Size 36.00 MM Tube

Interchanges

Back To Top
  • 9719214586460
