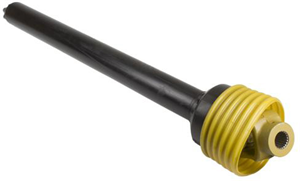

IMPLEMENT HALF SHAFT FOR PEANUT COMBINES - WALTERSCHEID 2500 STAR TUBING - CAT 6

Item Code: 971-9214636855
Brand: Weasler
Login for Availability
Weight: 25.24 lbs

Description

Replaces Amadas WS805521PY

Features Interchanges

Features

Features:

Direct Replacement with Standard Lengths and Series.
Star Profile Telescoping Members for Better Thrust Handling.
Patented Easy Lock™ Guard System.

Tech Specs

Brand	Weasler
Compressed Overall Length	34.625 Inches
Cross & Bearing Cap Diameter	1.38 Inch / 34.90mm
Cross & Bearing Overall Length	4.20 Inch / 106.50 mm
CV Category	Cat 6
Driveshaft Application	Peanut Combine
Driveshaft Implement End	1-3/8" - 21Spline Clamp Yoke
Implement Yoke Part Number	801-7921
PTO Product Category	Driveshaft
PTO Product Sub Category	CV Half Shaft
PTO Tubing Shape	Star Tube
Tube or Shaft Size	61.00 MM Tube
Walterscheid Metric PTO Series	2580

Interchanges

Back To Top

WS805521PY
92-14636855
9214637955
92-14637955
