CV TRACTOR SIDE HALF SHAFT FOR BUSH HOG AND JOHN DEERE MOWERS AND PEANUT COMBINES - 1-3/8 21 SPLINE TRACTOR YOKE - WALTERSCHEID 2500 STAR TUBING - CV CAT 6
Description
Replaces Amadas WS805521QD
Features

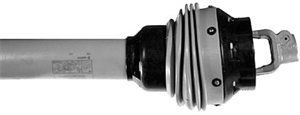

Back To TopCategory 6 CV Tractor Half Shaft - 2580 Series Waltercheid
Fits Bush Hog and John Deere Flex Wing Mowers and Peanut Harvesters
Constant velocity (CV) wide angle universal joint assemblies allow for smooth machine operation through a broad range of motion. The universal joints included allow the machine to be designed with the input shaft in the best operating position and yet allow the operator to maneuver as needed. The CV delivers constant power by self-canceling torque and speed fluctuations typically found in single cardan-type universal joints.
Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation
Tech Specs
Back To TopBrand | Weasler |
---|---|
Compressed Overall Length | 30.00 Inches |
Cross & Bearing Cap Diameter | 1.38 Inch / 34.90mm |
Cross & Bearing Overall Length | 4.20 Inch / 106.50 mm |
CV Category | Cat 6 |
Driveshaft Application | Peanut Combine & Rotary Cutter |
PTO Product Category | Driveshaft |
PTO Product Sub Category | CV Half Shaft |
PTO Tubing Shape | Star Tube |
Tractor Yoke Lock Type | Auto-Lok |
Tractor Yoke Size | 1-3/8" 21 Spline |
Tube or Shaft Size | 51.00 MM Shaft |
Walterscheid Metric PTO Series | 2580 |
Application
Back To TopMake | Type | Model |
---|---|---|
Alamo | Rotary Cutter | A141V, A201V |
John Deere | Rotary Cutter | 1517, 1518, 2018, CX15, CX20, HX15, HX20 |
Rhino | Rotary Cutter | FL14, FLEX 15, FLEX15, SE10-4A, SE10A, SE15-4A, SR14, SR15, SR15M, SR20 |
Interchanges
Back To Top- AW30770 (JOHN DEERE)
- 971-9314617955
- 971-14617955
- 97114617955
- 9314617955
- 93-14616855
- WS805521QD
- 93-14617955
