6 BOLT 2760 LB. CAP. HUB WITH CUPS W709
Price Breaks
Description
Agricultural 6 Bolt, 6" Bolt Circle, 4.62" Pilot Hub with Cups - 2760 lb. capacity. Component parts sold separately. Will replace Orthman 302-204.
Tech Specs
Back To Top| # Bolts / Studs | 6 Bolt |
|---|---|
| Bearing Spacing | 1.56 Inch |
| Bolt / Stud | Bolt 953022 |
| Bolt Circle | 6 Inch |
| Capacity | 2,760 Pounds |
| Capacity Range | 2000-3499 Pounds |
| Grease Seal | 906283 |
| Hub / Spindles Assembly Part Number | N/A |
| Hub Cap | 909905 |
| Hub Series | Q709 / W709 |
| Inner Cone | LM48548 |
| Inner Cup | LM48510 |
| Outer Cone | LM67048 |
| Outer Cup | LM67010 |
| Pilot Hole | 4.62 Inch |

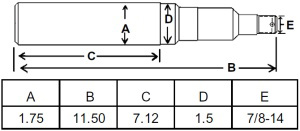

| Spindle Part Number | 280710 |
