4 BOLT 1250 LB. CAPACITY HUB WITH CUPS - Q669
Price Breaks
Description
Agricultural 4 Bolt, 5" Bolt Circle, 3.62" Pilot Hub with Cups - 1250 lb. capacity - Component parts sold separately -Uses Spindle 280771 & Grease Seal 906296 or Spindle 281200 & Grease Seal 906293
Tech Specs
Back To Top| # Bolts / Studs | 4 Bolt |
|---|---|
| Bearing Spacing | 1.16 Inch |
| Bolt / Stud | Bolt 953022 |
| Bolt Circle | 5 Inch |
| Capacity | 1,250 Pounds |
| Capacity Range | 1000-1500 Pounds |
| Grease Seal | 906293 |
| Hub / Spindles Assembly Part Number | 283302 ( 669 ) / 283339 ( 12-4 ) |
| Hub Cap | 909907 |
| Hub Series | FH12-4 / Q669 |
| Inner Cone | LM67048 |
| Inner Cup | LM67010 |
| Outer Cone | LM11949 |
| Outer Cup | LM11910 |
| Pilot Hole | 3.62 Inch |

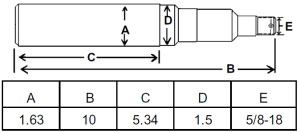

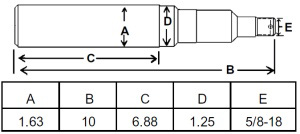

| Spindle Part Number | 280771 / 281200 |
Interchanges
Back To Top- N281001 (JOHN DEERE)
