5 STUD 2500 LB. CAPACITY HUB W / CUPS - FH25-5
Price Breaks
Description
Agricultural 5 Stud, 5.5" Bolt Circle, 4" Pilot Hub with Cups and Studs - 2500 lb. capacity - Component parts sold separately
Tech Specs
Back To Top| # Bolts / Studs | 5 Stud |
|---|---|
| Bearing Spacing | 1.55 Inch |
| Bolt / Stud | Stud 913576 |
| Bolt Circle | 5.5 Inch |
| Capacity | 2,500 Pounds |
| Capacity Range | 2000-3499 Pounds |
| Grease Seal | 906295 |
| Hub / Spindles Assembly Part Number | 283351 |
| Hub Cap | 909905 |
| Hub Series | FH25-5 |
| Inner Cone | LM48548 |
| Inner Cup | LM48510 |
| Nut | 912919 |
| Outer Cone | LM67048 |
| Outer Cup | LM67010 |
| Pilot Hole | 4 Inch |

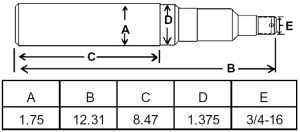

| Spindle Part Number | 281210 |
