6 STUD 3000 LB. CAP. HUB WITH CUPS FH30-6
Price Breaks
Description
Agricultural 6 Stud, 6" Bolt Circle, 4.62" Pilot Hub with Cups and Studs. Component parts sold separately. Fits Forrest City Do-All. See SMA1001 for Bearing Kit.
Tech Specs
Back To Top| # Bolts / Studs | 6 Stud |
|---|---|
| Bearing Spacing | 2.19 Inch |
| Bolt / Stud | Stud 913576 |
| Bolt Circle | 6 Inch |
| Capacity | 3,000 Pounds |
| Capacity Range | 2000-3499 Pounds |
| Grease Seal | 906295 |
| Hub / Spindles Assembly Part Number | 283353 |
| Hub Cap | 909905 |
| Hub Series | FH30-6 |
| Inner Cone | LM29749 |
| Inner Cup | LM29710 |
| Nut | 912919 |
| Outer Cone | LM67048 |
| Outer Cup | LM67010 |
| Pilot Hole | 4.62 Inch |

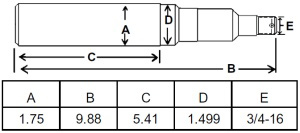

| Spindle Part Number | 281220 |
