8-BOLT HUB 6000 LBS CAP WITH CUPS
Price Breaks
Description

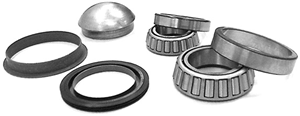

8 Stud, 8 inch Bolt Circle, 6 inch Pilot Agricultural Hub with Cups and Studs and Grease Zerk. Component parts sold separately. Fits 330 and 335 Vertical Till, 530C Ecolo Tiger, 340, 370, 770, RMX340, RMX370, RMX790, 3950 Discs.Will replace 87407202.
Tech Specs
Back To Top| # Bolts / Studs | 8 Stud |
|---|---|
| Bearing Spacing | 2.56 Inch |
| Bolt / Stud | Stud 913556 |
| Bolt Circle | 8 Inch |
| Capacity | 6,000 Pounds |
| Capacity Range | 6000+ Pounds |
| Grease Seal | 906486 |
| Hub / Spindles Assembly Part Number | N/A |
| Hub Cap | 909912 |
| Hub Series | FH60-8 |
| Inner Cone | JLM506849 |
| Inner Cup | JLM506810 |
| Nut | 913557 |
| Outer Cone | LM501349 |
| Outer Cup | LM501310 |
| Pilot Hole | 6 Inch |

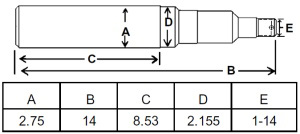

| Spindle Part Number | 281260 |
Interchanges
Back To Top- 86990965 (CNH)
- 87407202 (CNH)
- N281081 (JOHN DEERE)
