6 BOLT 3560 LB. CAP. HUB WITH CUPS W777
Price Breaks
Description
Agricultural 6 Bolt, 6" Bolt Circle, 4.62" Pilot Hub with Cups and Grease Fitting - 3560 lb. capacity - Component parts sold separately. EWC 777
Tech Specs
Back To Top| # Bolts / Studs | 6 Bolt |
|---|---|
| Bearing Spacing | 1.56 Inch |
| Bolt / Stud | Bolt 953022 |
| Bolt Circle | 6 Inch |
| Capacity | 3,560 Pounds |
| Capacity Range | 3500-4500 Pounds |
| Grease Seal | 906284 |
| Hub / Spindles Assembly Part Number | 283750 |
| Hub Cap | 909905 |
| Hub Series | Q777 / W777 / Q810 / W810 |
| Inner Cone | LM29749 |
| Inner Cup | LM29710 |
| Outer Cone | LM67048 |
| Outer Cup | LM67010 |
| Pilot Hole | 4.62 Inch |

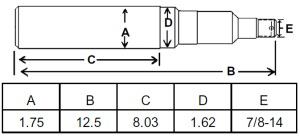

| Spindle Part Number | 289520 |
