6 BOLT 4570 LB. CAP. HUB WITH CUPS W783
Price Breaks
Description
6 Bolt, 6" Bolt Circle, 4.62" Pilot Transport Wheel Hub with Cups. Component parts sold separately - Fits Great Plains Model 3S3000 30 ft., 3 section drill, large Miller Disc
Tech Specs
Back To Top| # Bolts / Studs | 6 Bolt |
|---|---|
| Bearing Spacing | 2 Inch |
| Bolt / Stud | Bolt 953022 |
| Bolt Circle | 6 Inch |
| Capacity | 4,570 Pounds |
| Capacity Range | 4501-5999 Pounds |
| Grease Seal | 906493 |
| Hub / Spindles Assembly Part Number | 283046 |
| Hub Cap | 909905 |
| Hub Series | Q783 / W783 |
| Inner Cone | LM501349 |
| Inner Cup | LM501310 |
| Outer Cone | LM67048 |
| Outer Cup | LM67010 |
| Pilot Hole | 4.62 Inch |

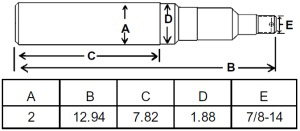

| Spindle Part Number | 289510 |
Interchanges
Back To Top- 28278300 (CNH)
