1-3/4 X 10-11/16 INCH SPINDLE FOR CASE IH 465493 HUB
Price Breaks
Description

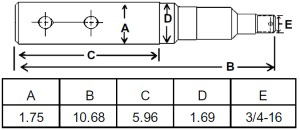

Has 2 holes for 3/8" bolts, 1 is 2" from back to hole center and 1 is 3-1/2" from back to hole center
Spindle nut and washer sold separately
Replaces Case/I.H. 478375R1 for 480-490 Disc Harrows.
Features
Back To Top
Tech Specs
Back To Top| # of Bolt Holes | 2 Bolt |
|---|---|
| Brand | FOR CASE IH |
| Diameter | 1-3/4 Inch |
| Fits Hub | 465493 |
| Length | 10-11/16 Inch |
| Product Category | Transport Hub/Spindle |
| Product Type | Spindle |
| Spindle Nut | 912945 |
| Spindle Washer | 913608 |
Application
Back To Top| Make | Type | Model |
|---|---|---|
| Case IH | Disc Harrow | 475, 485, 496, 501, 596, 760, 770 |
| Case IH | Moldboard Plow | 700, 800 |
| International Harvester | Chisel Plow | 14 |
| International Harvester | Disc Harrow | 470, 475, 48, 480, 485, 490, 496, 500, 501, 596, 610, 760 |
| International Harvester | Moldboard Plow | 510, 535, 540, 700, 710, 720, 730, 735, 800 |
| International Harvester | Mulcher | 315 |
Interchanges
Back To Top- 478375R1 (CNH)
