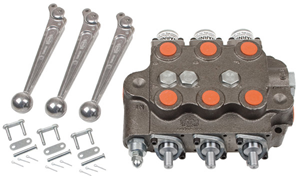

3 SPOOL HYDRAULIC VALVE, CLOSED CENTER WITH FLOAT
Description
3 Spool Closed Center Hydraulic Control Valve; 4-way, 3 position; 1st Spool Float Detent, All Spools Spring Centering to Neutral; With End Ports; No Relief Valve; Comes with Handle; For operating double-acting cylinders or a reversible hydraulic motor. BA3B22XAAD5EA0
Tech Specs
Back To TopHandle | Comes With Handles |
---|---|
Hydraulic Systems | Closed |
Max Flow | 30 GPM |
Number of Valve Spools | 3 |
Outlet Location | End Outlet |
Port Size | Inlet And Outlet 3/4 Inch Nptf, Working Ports 1/2 Inch Nptf |
Power Beyond Port | Closed Center Plug |
Relief Port | No Relief Port |
Spool 1 Action | 4 Position, Spring Centering To Neutral, Float Position Detent |
Spool 1 Specification | 4 Way, 4 Position, Closed Center, Detent Float Position |
Spool 2 Action | 3 Position Spring Centered |
Spool 2 Specification | 4 Way, 3 Position |
Spool 3 Action | 3 Position Spring Centered |
Spool 3 Specification | 4 Way, 3 Position |
Interchanges
Back To Top- BA3B22XAAD5EA0
- 196-151000
- 151000
